USA 8kW/20kWh Solar Container
This project · location
USA
Deployed at this site
20ft container, roof-mounted PV + 20kWh ESS
Results achieved
Completed
2024
This project · payback
2.5 years
What happened at this site
Project overview
The case record describes an integrated photovoltaic and energy storage product with a modular folding structure — a solar-container-style solution that blurs the line between building and energy system. The modular pod is lightweight, mobile and suitable for outdoor expeditions, disaster relief, eco-tourism and temporary offices.
Applications at this site
- Remote construction site command centres
- Disaster emergency hospitals
- Geological exploration outposts
- Scenic area boutique lodgings and event exhibition halls
- Film and television location bases
Installed capacity
- Photovoltaic module capacity: 9 kWp
- Energy storage system capacity: 20 kWh
- System power: 8 kW

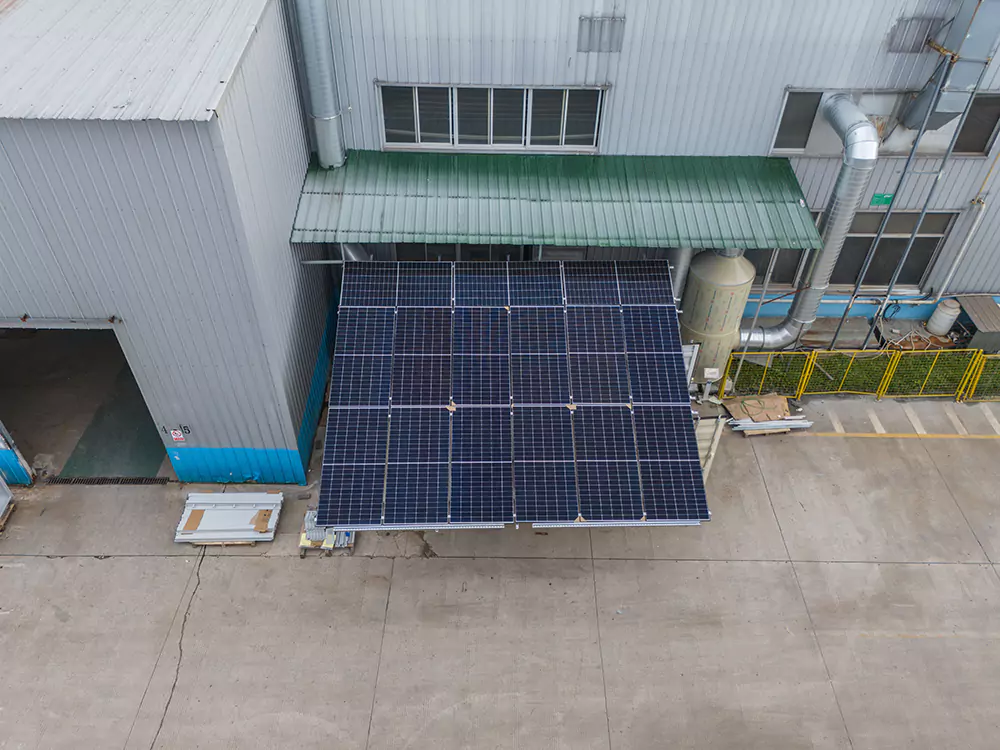

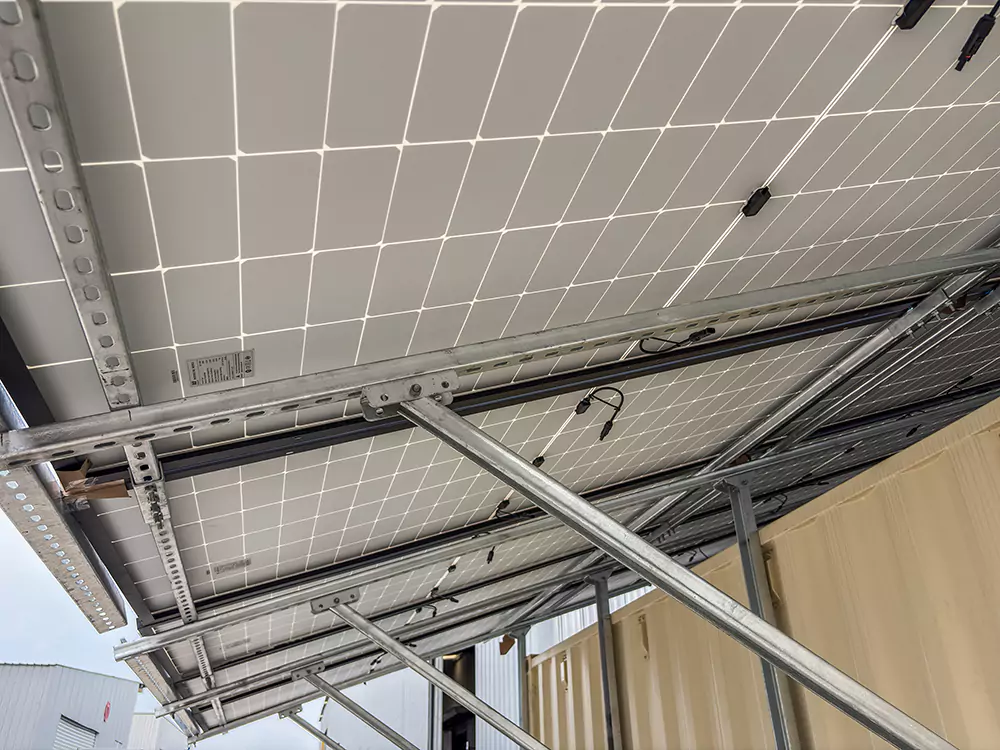

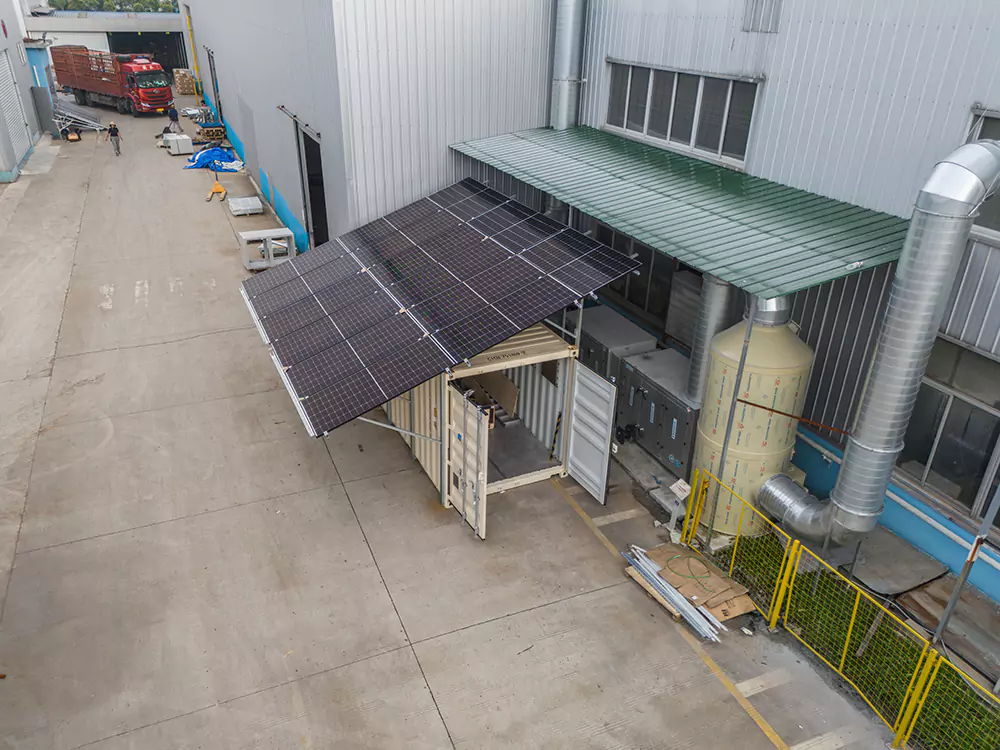

Project photos
Results at this site
Project advantages
- Flexible deployment: modular folding structure enables rapid deployment and adaptation to diverse scenarios.
- Advanced protection: IP54 container and IP66 modules for weather resistance in challenging environments.
- Intelligent management: real-time energy monitoring for efficient power allocation.
- High-efficiency generation: 23.2% module efficiency from 15 × 600W monocrystalline double-glass N-type modules.
Technical specifications
| Item | Specification |
|---|---|
| Container | 20-foot non-standard (6058 × 2438 × 2591 mm) |
| Photovoltaic modules | Monocrystalline double-glass N-type, 600 W each, 15 total, 23.2% efficiency |
| PV inverter | 10 kW AC ×1, single-phase 220V, IP65 (optional) |
| ESS | 8 kW power, 20 kWh capacity, natural ventilation cooling |
| Protection | Container IP54, modules IP66 |
